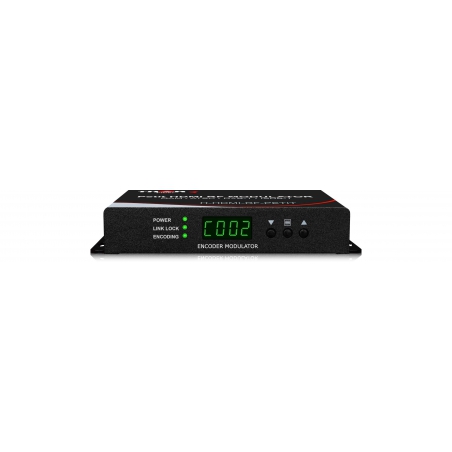

Petit HDMI RF Modulator
Rujukan:
$402.99
Perfect HD up to 1080P/60 HDMI to Coax RF DIGITAL MODULATOR, Network - Ethernet Control
The most unique and cost-effective Network Digital HDMI RF modulator. Designed to allow any HDMI source like an STB, satellite receiver, HDMI camera, DVD player, Computer, and a ROKU device. You can convert to any RF TV channel of your choice.
This Thor Modulator is an all-in-one device integrating HD MPEG2 encoding with AC3 Dolby Audio with an internal digital modulator. Converts HD audio/video signals from any device into DVB-C/T/ATSC/ISDB-T RF output.
The unit supports any HD source with the following video resolutions: 720p, 1080i, 1080p
Simply connect to any PC and control the unit via Thor Broadcast's proprietary GUI which has been touted as being the best on the market.
Just plug and play and enjoy exceptional quality for a very low price to help anyone with any budget create their very own RF channel which can be viewed on thousands of televisions simultaneously.
Package Weight 0.50 kg
Secured Payment
Delivery Policy
Refunds & Return Policy
Encoding Section-Video
Encoding
MPEG2
Interface
HDMI*1
Resolution
Input
720@60p
1080@50i
1080@60p
Output
Max. 1080@30p
Bit rate
2.000-24.000 Kbps
Encoding Section-Audio
Encoding
MPEG-1 Layer2, MPEG-2 AAC, AC3
Sample rate
48KHz
Bit rate
MPEG1 Layer 2 (128Kbps)
MPEG-2 AAC (VBR)
AC3 (128kbps)
System
Management
Ethernet
Language
English
Upgrade
USB/Ethernet
Menu Configuration
Basic
RF range/Key ID/ Service Name/ RF attenuation
Advanced
Service provider/Network ID/ ONID/ TS ID/ Service
ID/PMT PID/VPID/APID/PCR PID/Network
Modulator Section
MER
Typ. 35dB
RF range
50-950MHz, 1KHz step
RF output level
100 dB ( 70-100 adj )
Standard
ISDB-T
Bandwidth
6M
Constellation
QPSK, 16QAM, 64QAM
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
Guard interval
1/4, 1/8, 1/16, 1/32
FFT
2K, 8K
Standard
DVB-T
Bandwidth
6M, 7M, 8M
Constellation
QPSK, 16QAM, 64QAM
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
Guard interval
1/4, 1/8, 1/16, 1/32
FFT
2K, 8K
Standard
DVB-C J.83A
Constellation
64QAM, 128QAM. 256QAM
Symbol rate
5.000-9.000Msps adj
Standard
DTMB
Bandwidth
8M
Constellation
GB20600-2006
Standard
ATSC
Bandwidth
6M
Constellation
8VSB
Standard
QAM J.83B
Bandwidth
6M
Constellation
64QAM, 256QAM
General
Power supply
12V1A
Dimensions
103*64*24mm
Weight
300g
