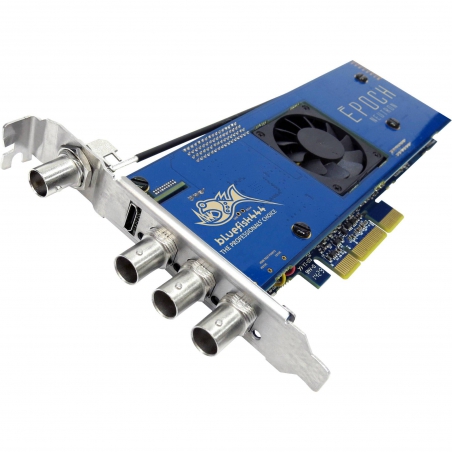

Epoch | Neutron With Genlock

Rujukan:

$1,695.00

DELIVER CUTTING-EDGE VIDEO PRODUCTS WITH EPOCH | NEUTRON

In an industry that always demands "bigger and better" Bluefish444 have yet again delivered! This time we have gone one step further, the Epoch | Neutron packs a massive amount of power into a form-factor that defies belief. With 3 independent SDI I/O connectors, an HDMI video OUTPUT and options for AES EBU audio I/O, analogue audio OUTPUT, LTC I/O, and RS-422 machine control.

Package Weight 0.40 kg
Kuantiti



Secured Payment



Delivery Policy



Refunds & Return Policy



Interface

4-Lane PCI-Express (8- and 16-lane compatible)



Card Length

Half length



Input / Output

3 x bi-directional HD/SD-SDI, ASI (BNC) (one connector supports bi-level and tri-level analog genlock A/B)

1 x HDMI 1.4 output



SDI Formats Supported

SD-SDI (SMPTE 295M)

HD-SDI (SMPTE 292M)

Dual link HD-SDI (SMPTE 372M)



ASI Formats Supported

ASI EN50083-9

ASI/SDI input auto-detection

Burst and non-burst packet auto-detection

Inverted bit-stream auto-detection & correction



HDMI Output

2K/HD/SD

(4K DCI) 4096x2160p @ 24 fps

(UHD) 3840x2160p @ 24, 25, 29, 30 fps



Embedded Audio

16 channels of embedded audio per SDI input/output

Dolby Digital pass-through SDI



Reference

Bi-level/tri-level Reference INPUT supporting (Via dedicated BNC)



HANC I/O

RP188 timecode

16 channels of embedded audio per SDI

Video payload ID

Custom packets



VBI / VANC I/O

Closed captioning

3 line VITC

Custom packets



DMA Data Transfer Bandwidth

1.1 GB/s full duplex DMA data transfer bandwidth



On Board Memory

256 MB



Resolutions & Frame Rates

YUV SDI Video Modes

720 x 486i @ 29.97 fps (NTSC)

720 x 576i @ 25 fps (PAL)

1280 x 720p @ 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 fps

1920 x 1080i @ 25, 29.97, 30 fps

1920 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps

1920 x 1080p/PsF @ 48, 50, 59.94, 60 fps (dual-link HD-SDI only)

1920 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps

2048 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps

2048 x 1080p/PsF @ 48, 50, 59.94, 60 fps (dual-link HD-SDI only)



RGB SDI Video Modes

720 x 486i @ 29.97 fps (NTSC) (dual-link HD-SDI only)

720 x 576i @ 25 fps (PAL) (dual-link HD-SDI only)

1920 x 1080i @ 25, 29.97, 30 fps (dual-link HD-SDI only)

1920 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps (dual-link HD-SDI only)

2048 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps (dual-link HD-SDI only)



Supported Pixel Formats

2VUY, YUVS, BV8, V210, AYUV_4224, AYUV_4444, YV12, I420

ARGB, BGRA, RGB24, Cineon, DPX, RGB48

Custom using flexible hardware pixel format engine



Supported APIs

Windows API C++

DirectShow Filters API

Mac OS X API C++

Linux API



Dimensions

7.24 x 3.12" (184.0 x 79.2 mm)



Package Weight

0.7 lb



Box Dimensions (LxWxH)

9.2 x 5.5 x 2.5"
