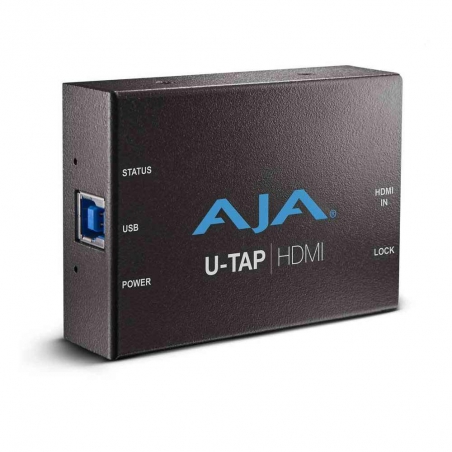

U-TAP HDMI
Rujukan:
Simple USB 3.0 Powered HDMI Capture
The U-TAP HDMI USB 3.0 capture device brings professional connectivity and high quality video capture to your laptop or workstation. U-TAP HDMI is bus powered with the ability to simply and easily bring in video across HDMI for use within a wide range of software without any drivers to install, as it’s supported directly in macOS X®, Windows® and Linux®.

Secured Payment

Delivery Policy

Refunds & Return Policy
Video Formats
Video (HDMI)
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 625p 25
(SD) 625i 50
(SD) 525p 29.97
(SD) 525i 59.94
Computer (HDMI), up to 60 Hz max for all formats
1920 x 1080p
1680 x 1050p
1600 x 1200p
1600 x 1024p
1280 x 1024p
1280 x 960p
1280 x 768p
1024 x 768p
800 x 600p
640 x 480p
Scaled (USB), Frame rates for all formats: 7.5, 15, 25, 29.97, 30, 50, 59.94, 60
1920 x 1080p
1440 x 1080p
1280 x 720p
1024 x 576p
960 x 540p
856 x 480p
800 x 600p
768 x 576p
720 x 576p
720 x 480p
640 x 480p
640 x 360p
432 x 240p
352 x 288p
320 x 240p
176 x 144p
Note: PsF formats are not supported.
Video Input Digital
HDMI v1.4a, 24, 30 or 36-bits/pixel, RGB or YUV
Audio Input Digital
2-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate
Capture Video
16-bits/pixel, YUV (input video will be truncated as required)
Capture Audio
2-Channel, 16-bit, 48 kHz sample rate (input audio will be truncated as required)
Host Interface
USB 3.0/USB 2.0 UVC compliant
Size (w x d x h)
3.3" x 2.4" x 1.0" (83.82 x 60.96 x 25.4 mm)
Weight
0.3 lb (0.2 kg)
Power
5V USB bus powered; 3.5W max
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

Simple USB 3.0 Powered HDMI Capture
The U-TAP HDMI USB 3.0 capture device brings professional connectivity and high quality video capture to your laptop or workstation. U-TAP HDMI is bus powered with the ability to simply and easily bring in video across HDMI for use within a wide range of software without any drivers to install, as it’s supported directly in macOS X®, Windows® and Linux®.
