3G-AMA

Reference:

$795.00

3G-SDI Analog Audio Embed/Disembed

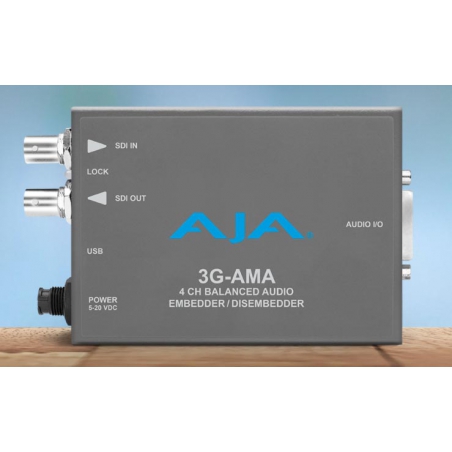

The 3G-AMA is a 4-channel analog audio embedder/disembedder with support for 3G-SDI input and output up to 1080p 60. Audio disembedding is always functional, providing four analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 3G-SDI input audio or to embed input analog audio from the breakout cable. Analog audio levels are selectable. The 3G-AMA automatically detects and configures to the input video standard.

Package Weight 0.60
Quantity
Pre-Order



Secured Payment



Delivery Policy



Refunds & Return Policy



Video Formats

(2K) 2048 x 1080p

(2K) 2048 x 1080PsF

(HD) 1920 x 1080p

(HD) 1920 x 1080PsF

(HD) 1920 x 1080i

(HD) 1280 x 720p

(SD) 720 x 576i

(SD) 720 x 480i



Video Input Formats

1x 3 Gb SDI (level A or B)

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p 50, 59.94, 60

1x 1.5 Gb SDI

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1x 270 Mb SDI

(SD) 625i

(SD) 525i



Video Output Formats

Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.

Video Latency, time measured between video input and video output connector:

3G level A = 3.2 usec

3G level B = 6.1 usec

HD (1.5 Gb) = 6.3 usec

SD (270 Mb) = 17.2 usec



Video Input Digital

1x 3G-SDI BNC, SMPTE-259/292/424



Video Output Digital

1x 3G-SDI BNC, SMPTE-259/292/424



Audio Inputs and Outputs

Balanced Analog Audio, 1x 25 pin D female connector on converter, 4-Channels in, 4-Channels out.

Breakout cable provided with 1x 25 pin D male connector:

4x XLR female input breakout connectors

4x XLR male output breakout connectors



Audio Data Formats

AES3-2003

SMPTE 337M



Digital Audio Converters

24-bit



Embedded Audio

SMPTE 272M (SD): 20-bit, 48 KHz synchronous

SMPTE 299M (3G/HD): 24-bit, 48 KHz synchronous

Incoming embedded audio can be passed, removed, or overridden

Up to 16-Channels supported



NOTE: 2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-Channels embedded audio



Embed Path Audio Latency

(time measured between audio input and video output connector):

1500 usec (SRC ON)

400 usec (SRC OFF)



Disembed Path Audio Latency

(time measured between video input and audio output connector):

210 usec



Analog Audio Levels

Configured via Mini-Config software:

Pro 1: 0 dBfs = +24 dBu

Pro 2: 0 dBfs = +18 dBu

Pro 3: 0 dBfs = +15 dBu

Consumer 1: 0 dBfs = +12 dBu



User Controls

External DIP switch

USB port used with Mini-Config software application to configure device via PC/Mac



Size (w x d x h)

5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)



Power

+5-20VDC, 5 watts power supply required, included with purchase



Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

Operating Relative Humidity: 10-90% noncondensing

Operating Altitude: <3,000 meters (<10,000 feet)





Video Formats

(2K) 2048 x 1080p

(2K) 2048 x 1080PsF

(HD) 1920 x 1080p

(HD) 1920 x 1080PsF

(HD) 1920 x 1080i

(HD) 1280 x 720p

(SD) 720 x 576i

(SD) 720 x 480i



Video Input Formats

1x 3 Gb SDI (level A or B)

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p 50, 59.94, 60

1x 1.5 Gb SDI

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30

(2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1920 x 1080i 50, 59.94, 60

(HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

1x 270 Mb SDI

(SD) 625i

(SD) 525i



Video Output Formats

Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.

Video Latency, time measured between video input and video output connector:

3G level A = 3.2 usec

3G level B = 6.1 usec

HD (1.5 Gb) = 6.3 usec

SD (270 Mb) = 17.2 usec



Video Input Digital

1x 3G-SDI BNC, SMPTE-259/292/424



Video Output Digital

1x 3G-SDI BNC, SMPTE-259/292/424



Audio Inputs and Outputs

Balanced Analog Audio, 1x 25 pin D female connector on converter, 4-Channels in, 4-Channels out.

Breakout cable provided with 1x 25 pin D male connector:

4x XLR female input breakout connectors

4x XLR male output breakout connectors



Audio Data Formats

AES3-2003

SMPTE 337M



Digital Audio Converters

24-bit



Embedded Audio

SMPTE 272M (SD): 20-bit, 48 KHz synchronous

SMPTE 299M (3G/HD): 24-bit, 48 KHz synchronous

Incoming embedded audio can be passed, removed, or overridden

Up to 16-Channels supported



NOTE: 2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-Channels embedded audio



Embed Path Audio Latency

(time measured between audio input and video output connector):

1500 usec (SRC ON)

400 usec (SRC OFF)



Disembed Path Audio Latency

(time measured between video input and audio output connector):

210 usec



Analog Audio Levels

Configured via Mini-Config software:

Pro 1: 0 dBfs = +24 dBu

Pro 2: 0 dBfs = +18 dBu

Pro 3: 0 dBfs = +15 dBu

Consumer 1: 0 dBfs = +12 dBu



User Controls

External DIP switch

USB port used with Mini-Config software application to configure device via PC/Mac



Size (w x d x h)

5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)



Power

+5-20VDC, 5 watts power supply required, included with purchase



Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

Operating Relative Humidity: 10-90% noncondensing

Operating Altitude: <3,000 meters (<10,000 feet)
