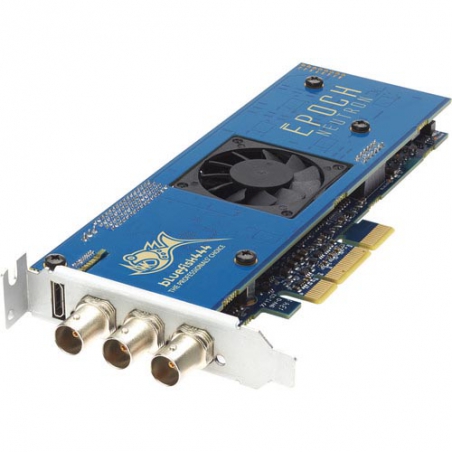

Epoch | Neutron LP
Reference:
DELIVER CUTTING-EDGE VIDEO PRODUCTS WITH EPOCH | NEUTRON
In an industry that always demands "bigger and better" Bluefish444 have yet again delivered! This time we have gone one step further, the Epoch | Neutron packs a massive amount of power into a form-factor that defies belief. With 3 independent SDI I/O connectors, an HDMI video OUTPUT and options for AES EBU audio I/O, analogue audio OUTPUT, LTC I/O, and RS-422 machine control.

Secured Payment

Delivery Policy

Refunds & Return Policy
Interface
4-Lane PCI-Express (8- and 16-lane compatible)
Card Length
Half length
Input / Output
3 x bi-directional HD/SD-SDI, ASI (BNC) (one connector supports bi-level and tri-level analog genlock A/B)
1 x HDMI 1.4 output
SDI Formats Supported
SD-SDI (SMPTE 295M)
HD-SDI (SMPTE 292M)
Dual link HD-SDI (SMPTE 372M)
ASI Formats Supported
ASI EN50083-9
ASI/SDI input auto-detection
Burst and non-burst packet auto-detection
Inverted bit-stream auto-detection & correction
HDMI Output
2K/HD/SD
(4K DCI) 4096x2160p @ 24 fps
(UHD) 3840x2160p @ 24, 25, 29, 30 fps
Embedded Audio
16 channels of embedded audio per SDI input/output
Dolby Digital pass-through SDI
Reference
Bi-level/tri-level Reference INPUT supporting (Via dedicated BNC)
HANC I/O
RP188 timecode
16 channels of embedded audio per SDI
Video payload ID
Custom packets
VBI / VANC I/O
Closed captioning
3 line VITC
Custom packets
DMA Data Transfer Bandwidth
1.1 GB/s full duplex DMA data transfer bandwidth
On Board Memory
256 MB
Resolutions & Frame Rates
YUV SDI Video Modes
720 x 486i @ 29.97 fps (NTSC)
720 x 576i @ 25 fps (PAL)
1280 x 720p @ 23.976, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i @ 25, 29.97, 30 fps
1920 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps
1920 x 1080p/PsF @ 48, 50, 59.94, 60 fps (dual-link HD-SDI only)
1920 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps
2048 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps
2048 x 1080p/PsF @ 48, 50, 59.94, 60 fps (dual-link HD-SDI only)
RGB SDI Video Modes
720 x 486i @ 29.97 fps (NTSC) (dual-link HD-SDI only)
720 x 576i @ 25 fps (PAL) (dual-link HD-SDI only)
1920 x 1080i @ 25, 29.97, 30 fps (dual-link HD-SDI only)
1920 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps (dual-link HD-SDI only)
2048 x 1080p/PsF @ 23.976, 24, 25, 29.97, 30 fps (dual-link HD-SDI only)
Supported Pixel Formats
2VUY, YUVS, BV8, V210, AYUV_4224, AYUV_4444, YV12, I420
ARGB, BGRA, RGB24, Cineon, DPX, RGB48
Custom using flexible hardware pixel format engine
Supported APIs
Windows API C++
DirectShow Filters API
Mac OS X API C++
Linux API
Dimensions
7.24 x 3.12" (184.0 x 79.2 mm)
Package Weight
0.7 lb
Box Dimensions (LxWxH)
9.2 x 5.5 x 2.5"

DELIVER CUTTING-EDGE VIDEO PRODUCTS WITH EPOCH | NEUTRON
In an industry that always demands "bigger and better" Bluefish444 have yet again delivered! This time we have gone one step further, the Epoch | Neutron packs a massive amount of power into a form-factor that defies belief. With 3 independent SDI I/O connectors, an HDMI video OUTPUT and options for AES EBU audio I/O, analogue audio OUTPUT, LTC I/O, and RS-422 machine control.
