GO-LIVE 650 Streaming Kit (SE-650 + NVS-33)

Reference:

$2,300.00

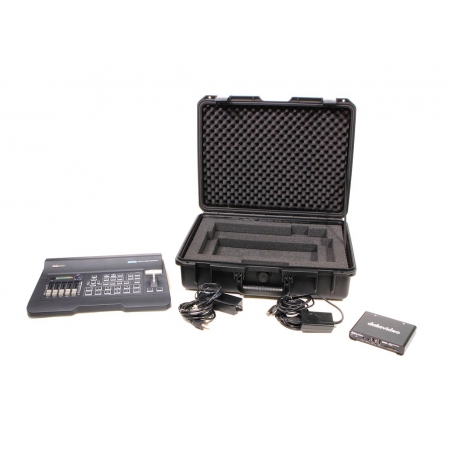

4-input HD switcher with H.264 streaming encoder/recorder and cables, inside a hand-carry case

The GO-650SR is a compact package that includes a flexible 4-input switcher and streaming encoder/recorder, packed into a durable case -- all at an excellent affordable price. The included SE-650 switcher is capable of broadcasting at 1080i max resolution. It can also output to 720p, making it perfect for reliable streaming.



With the included H.264 web streaming encoder, you can stream your show to virtually any CDN like Facebook, YouTube, Twitch in no time. You can also use Datavideo's own DVS-200 streaming server software to send videos to multiple destinations at the same time!

Package Weight 6.00
Quantity
Pre-Order



Secured Payment



Delivery Policy



Refunds & Return Policy



SE-650 SPECS



Video Standard

HD



Video Format

1080i 50/59.94/60Hz

720p 50/59.94/60Hz



Video Processing

SDI: 4:2:2

HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4



Input Routable / Crosspoint

All 4, repeatable



Video Input

2x HD-SDI

2x HDMI



Computer Graphic Interface

2 via HDMI



Video Output

2 x HDMI (1 is MV, 1 is Assignable)

1 x HD-SDI (Assignable)



Built-in Multi-view Monitoring Out

HDMI & SDI assignable



Analogue Audio Input

1 x Stereo RCA (L/R)

2 x Mono Microphone



Analogue Audio Output

1 x Stereo RCA (L/R)

1 x Stereo headphone (Mini Jack with volume control)



Digital Embedded Audio Support

Input 2 channels, Output 2 channels



A+V Switching

Yes



Chromakey

2



USK

2x Keyer support Chromakey/ Linear/ Luma Key



DSK

1x DSK support Lumakey/ Linear key (Key / Fill)



Picture in Picture

1



Logo Insertion

1



Still Store

500



Effects

FTB, Cut, 32 Wipe with border



Transition Preview

Full transitions preview



Sync / Reference In/Out

Built-in Genlock (internal)



Tally Output

1x D-sub 15pin, dual color



PC Remote Control

DVIP (Ethernet)



Built-in Audio Mixer

Yes, 4 channels



Special Features

Free Virtual Set and Stinger transition included



Chassis

Unibody



Dimension (LxWxH)

400 x 250 x 82 mm



Weight

1.9 kg



Power

DC 12V, 29W



Operating Temp. Range

0~40 °C



Options

CB-46/47/60/61/62





NVS-33 SPECS



Video Input

HDMI x1

SDI x1



Supported Video Input Resolution

1080p 60/59.94/50

1080p 30/29.97/25/24/23.98

1080i 60/59.94/50

720p 60/59.94/50

480i 59.94, 576i 50



Audio Input

SDI & HDMI embedded audio

RCA L/R x1



Encoding

H.264/AVC, Main/High Profile Level 4.1



Video Bitrate

Record Only: Up to 16Mbps (1080p50/60)

Stream Only: Up to 10Mbps (1080p50/60)

Rec+Stream: 10Mbps (1080p25/30)



Video Rate Mode

CBR/VBR



Audio Mode

Stereo/Mono



Audio Bitrate

Stereo: 64~384Kbps

Mono: 32~192Kbps



Streaming Protocols

TS over TCP/UDP (unicast & multicast)

RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)

RTMP/RTMPS (Publish)

HLS



Recording File Format

MP4, TS



Storage

SD Card x1

 (File System: NTFS, FAT, exFAT)



Power Supply

DC 12V



Dimension (LxWxH)

220 x 95 x 47 mm



Weight

0.7 kg



Operating Temp. Range

0~40 °C



What's in the Box

Content

1 x SE-650 product

1 x AD Switch DC 12V with AC Cord

1 x NVS-33 product

1 x AD Switch DC 12V

1 x Customized Hard Case

1 x Thank You Card
