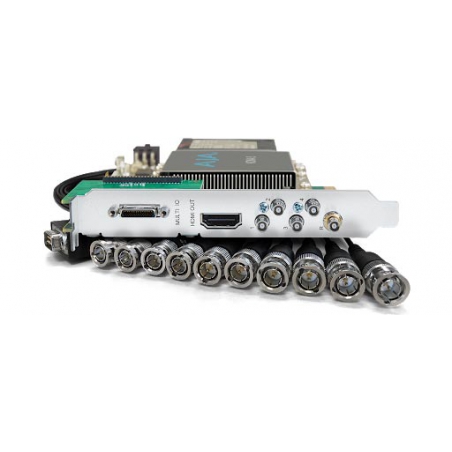

Kona 5

Video Formats

(8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60

(UltraHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60

(UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60

(2K) 2048 x 1080PsF 23.98, 24, 25

(HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60

(HD) 1080PsF 23.98, 24, 25, 29.97, 30

(HD) 1080i 50, 59.94, 60

(HD) 720p 50, 59.94, 60

(SD) 625i 50

(SD) 525i 59.94

Note: High Frame Rate and 8K/UltraHD2 capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates and raster sizes.

Video Inputs Digital

12G-SDI, SMPTE-2082, 12-bit*, 10-bit and 8-bit

6G-SDI, SMPTE-2081, 10-bit and 8-bit

3G-SDI, SMPTE-259/292/296/424/425, 12-bit*, 10-bit and 8-bit

4K/UltraHD 4:4:4 (4x BNC)

1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit*, 10-bit and 8-bit

1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.

Note: KONA 5 SDI connectors are HD BNC

Video Outputs Digital

12G-SDI*, SMPTE-2082, 12-bit*, 10-bit and 8-bit

6G-SDI*, SMPTE-2081, 10-bit and 8-bit

3G-SDI, SMPTE-259/292/296/424, 12-bit*, 10-bit and 8-bit

4K/UltraHD 4:4:4 (4x BNC)

1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit*, 10-bit and 8-bit

1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit

HDMI v2.0

30/36-bits/pixel, RGB or YUV, 6 Gbps per color component

4K, UltraHD, 2K, HD and SD with HFR support up to 60p (4:2:2), 10-bit and 8-bit

HDR10 Support** - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3

HLG Support** - compatible with HDMI 2.0b/CTA-861-G

*Bit depth support is application dependent. Check with your software manufacturer for compatibility.

**HDR support is application dependent. Check with your software manufacturer for compatibility.

Note: KONA 5 SDI connectors are HD BNC

SDI I/O

SDI connections are bidirectional

2K/HD, capture and monitoring is simultaneous

4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous.

4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output.

8K/UltraHD2 with 12G-SDI, connections must be used for either Input or Output.

Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UltraHD2/8K formats are supported.

Audio Inputs Digital

16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous

8-channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Audio Outputs Digital

16-Channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous

8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

8-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Downstream Keyer

Supports graphics up to 2K/HD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

Reference

Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) (via 1x HD-BNC at PCIe bracket)

Reference input is terminated into 75 ohms when Genlock is set to Ref In

Timecode

LTC timecode input and output (via 2x BNC on breakout cable)

LTC timecode input (via 2-pin header on PCIe card)

LTC timecode input (via HD-BNC at PCIe bracket)

Electrical Interface

8-lane PCIe 3.0

Machine Control

RS-422, Sony 9-pin protocol (via breakout cable)

Noise

<50dBA (A-weighted at 1m in free air)

Size (w x d x h)

0.75" x 6.9" x 5.0" (19.05 x 175.26 x 127.00 mm)

Weight

PCIe Card:  0.6 lbs (0.3 kg)

Cables (all combined): 1.3 lbs (0.6 kg)

Power

28W typical, 35W maximum via ATX power.

PC Internal ATX Power Connector (Molex p/n 45559-0002)

Note: Unlike other KONA cards, KONA 5 uses PCIe power from a 6 pin ATX connector, rather than the PCIe slot.

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)

Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)

Operating Relative Humidity: 10-90% noncondensing

Operating Altitude: <3,000 meters (<10,000 feet)
